The Truth About Electric Water Heater Heating Elements

1. What is a heating element in an electric water heater?

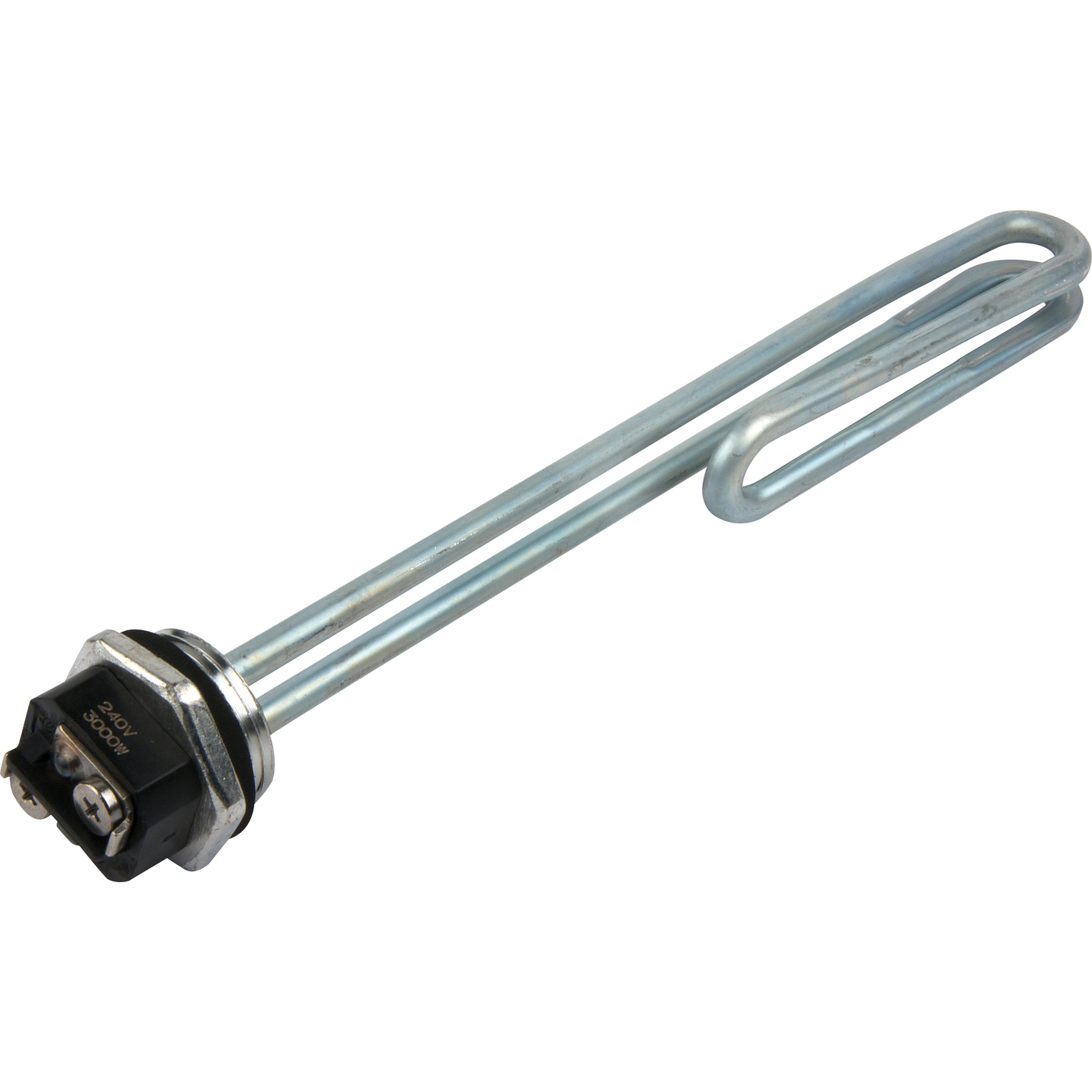

A heating element is a critical component of an electric water heater that is responsible for heating the water. It is essentially a coil of resistance wire that produces heat when an electric current passes through it. The heating element is typically made of stainless steel or other durable materials to withstand the high temperatures and corrosive nature of water.

• The heating element heats up the water in the tank to the desired temperature.
• It is an essential component for providing hot water in residential and commercial settings.

2. How does an electric water heater heating element work?

An electric water heater heating element works on the principle of electrical resistance. When an electric current flows through the resistance wire in the heating element, it generates heat. This heat is transferred to the surrounding water, raising its temperature. The thermostat in the water heater controls the operation of the heating element to maintain the desired temperature.

• Electric current flows through the resistance wire in the heating element.
• Resistance wire produces heat due to its electrical resistance.
• Heat is transferred to the water, raising its temperature.
• The thermostat regulates the heating element to maintain the desired temperature.

3. How long does an electric water heater heating element last?

The lifespan of an electric water heater heating element can vary depending on several factors such as usage, water quality, and maintenance. On average, a heating element can last anywhere from 8 to 12 years. However, if the water heater is used heavily or the water quality is poor, the heating element may wear out sooner.

• The lifespan of a heating element is influenced by factors like usage and water quality.
• Regular maintenance and proper care can help prolong the lifespan.
• Replacing a worn-out heating element is relatively simple and affordable.

4. Can a heating element be replaced in an electric water heater?

Yes, a heating element in an electric water heater can be replaced. If the heating element fails or wears out, it can be easily removed and replaced with a new one. It is important to turn off the power supply to the water heater before attempting to replace the heating element to avoid any electrical hazards.

• Replacing a heating element requires turning off the power supply.
• Remove the old heating element and install a new one as per the manufacturer's instructions.
• Ensure proper electrical connections and secure installation.

5. How much does it cost to replace an electric water heater heating element?

The cost of replacing an electric water heater heating element can vary depending on the specific type and model of the heating element, as well as any additional labor costs involved. On average, the cost of a heating element ranges from $20 to $50. However, it is recommended to consult a professional plumber or check with the manufacturer for accurate pricing.

• The cost of a heating element may vary based on the specific requirements.
• Additional labor costs may apply if professional assistance is required.
• Consulting a professional plumber can provide an accurate cost estimate.

6. Are there different types of heating elements for electric water heaters?

Yes, there are different types of heating elements available for electric water heaters. The most common types include:

• Standard Screw-In Elements: These are the most widely used heating elements that can be easily screwed into the water heater tank.
• Foldback Elements: Foldback elements have a unique design that allows for better heat distribution and prevents sediment buildup.
• Low-Watt Density Elements: These elements operate at lower watt densities, making them ideal for areas with hard water or high mineral content.

Choosing the right type of heating element depends on factors such as water quality, energy efficiency, and specific requirements of the water heater.

7. How can I know if the heating element in my electric water heater is faulty?

There are several signs that can indicate a faulty heating element in an electric water heater:

• Insufficient Hot Water: If the water heater is not producing enough hot water or taking longer to heat up, it could be due to a faulty heating element.
• Fluctuating Water Temperature: If the water temperature constantly fluctuates during use, it may indicate a problem with the heating element.
• No Hot Water: If there is no hot water at all, the heating element might be completely defective and needs to be replaced.

If you suspect a faulty heating element, it is recommended to consult a professional plumber to diagnose and resolve the issue.

8. Can I test the heating element in my electric water heater?

Yes, it is possible to test the heating element in an electric water heater using a multimeter. Here's how:

• Turn off the power supply to the water heater.
• Disconnect the wires connected to the heating element.
• Set your multimeter to the resistance or ohms mode.
• Touch the multimeter probes to the terminals of the heating element.
• If the multimeter reading shows infinite resistance, the heating element is likely faulty and needs replacement.

It is important to exercise caution and follow safety procedures while testing the heating element. If you are unsure or uncomfortable performing the test, it is best to seek professional assistance.

9. What can cause a heating element to fail in an electric water heater?

There are several factors that can contribute to the failure of a heating element in an electric water heater:

• Sediment Buildup: Over time, mineral deposits can accumulate on the heating element, reducing its efficiency and eventually causing it to fail.
• Dry-Firing: Dry-firing occurs when the heating element operates without water surrounding it, which can lead to overheating and damage.
• Electrical Issues: Problems with the electrical supply or wiring can cause the heating element to malfunction or fail.
• Manufacturing Defects: In rare cases, manufacturing defects or quality issues can cause premature failure of the heating element.

Regular maintenance, proper water treatment, and prompt repairs can help minimize the risk of heating element failure.

10. Can a heating element be repaired instead of replaced?

In most cases, heating elements in electric water heaters cannot be repaired and need to be replaced if they are faulty or worn out. Attempting to repair a heating element may not provide a reliable or long-term solution. It is recommended to replace the heating element with a new one purchased from a reputable manufacturer or supplier.

• Replacement is generally the most effective and reliable solution.
• Repairing a heating element may not address the underlying problem.
• Purchasing a new heating element ensures proper function and longevity.

11. Are there any safety precautions to consider when replacing a heating element?

When replacing a heating element in an electric water heater, it is crucial to follow certain safety precautions to minimize the risk of accidents or injuries:

• Turn off the power supply to the water heater before starting the replacement.
• Use insulated gloves and tools to protect against electric shocks.
• Drain the water heater tank to a safe level before removing the heating element.
• Follow the manufacturer's instructions and ensure proper electrical connections.
• If unsure or uncomfortable, seek professional assistance to avoid potential hazards.

12. Are there any energy-saving tips related to electric water heater heating elements?

Here are some energy-saving tips related to electric water heater heating elements:

• Lower the Temperature: Lowering the water heater temperature by a few degrees can result in significant energy savings without sacrificing comfort.
• Insulate the Tank: Adding an insulation blanket to the water heater tank can reduce heat loss and improve energy efficiency.
• Use Timers: Installing a timer for the water heater can allow you to schedule its operation during off-peak energy hours, saving on electricity costs.
• Regular Maintenance: Flushing the tank and removing sediment buildup can improve the efficiency of the heating element and prolong its lifespan.

Implementing these energy-saving practices can not only reduce your electricity bills but also contribute to a more sustainable environment.

Overall, understanding the role and functioning of electric water heater heating elements can help homeowners make informed decisions regarding their water heating needs. Proper maintenance and timely replacements can ensure the efficient and reliable operation of these essential components.
